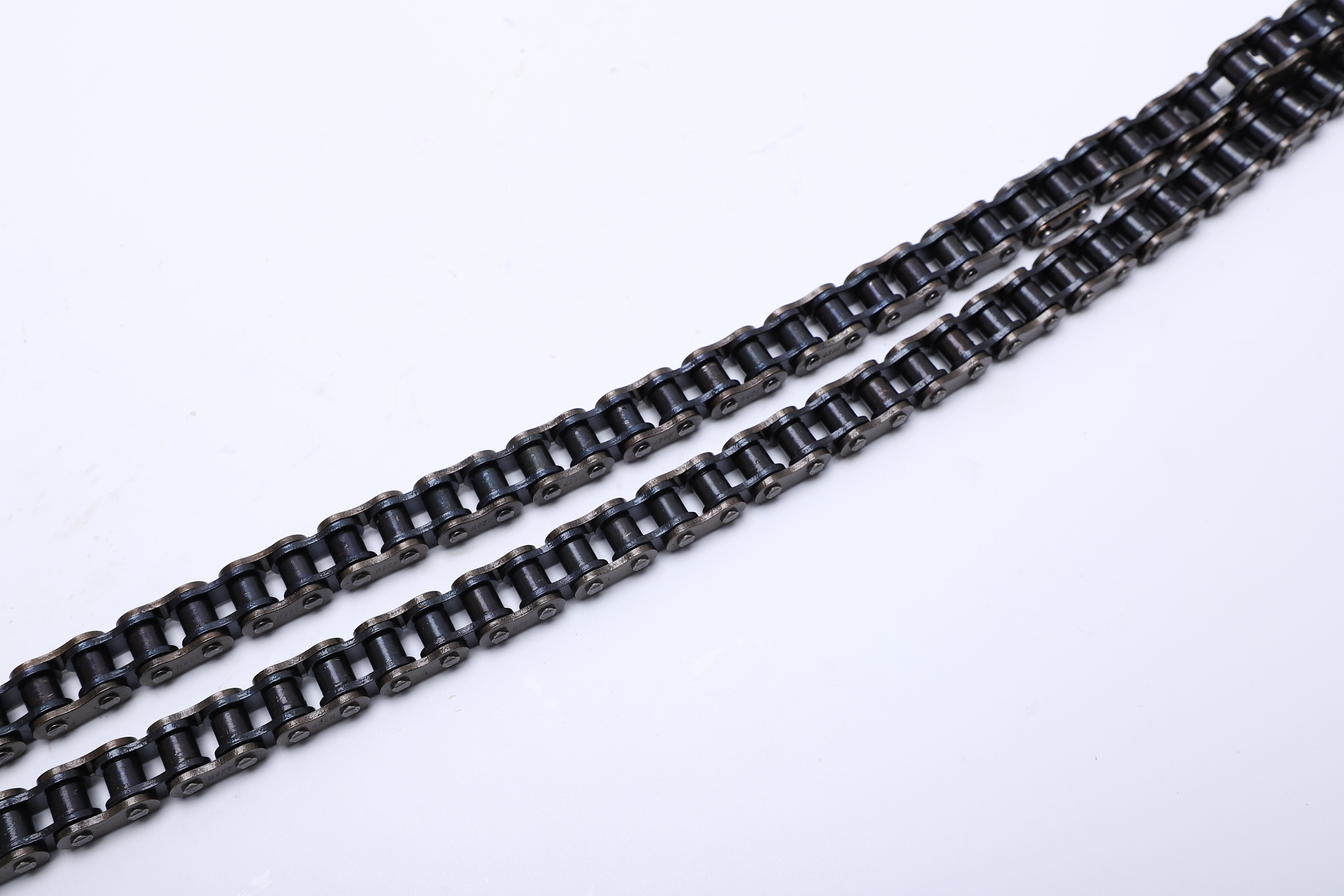

Roller chain pitch. It’s the gap between one pin’s center and the next. Simple enough. But this small measurement drives how well your chain and sprocket play together.
Get the pitch right, and your machinery hums right along. Get it wrong, and you’ll hear every squeak, feel every vibration, and watch your bearings pay the price.
Imagine you’re wearing shoes that don’t fit. Too big, too small—either way, you won’t walk right. It’s the same with a chain and its sprocket. The pitch has to match the sprocket’s tooth spacing perfectly. Otherwise, the chain can’t settle in. It slips, it grinds, it rattles.
Over time, this stress radiates out to everything else: shafts, housings, and especially bearings. Even top-tier bearings—pillow block, deep groove, spherical roller—can’t compensate for a chain that doesn’t fit right.
Perfect pitch means longer life, quieter operation, and fewer headaches down the road.
Measuring pitch is easy. Grab a caliper. Pick two adjacent pins. Measure from the center of one to the center of the other. That’s it. Most chains follow standard pitches—like 1/2″ for a common chain—so it’s not a guessing game.
Compare your numbers to the chain’s specs. If they match, you’re on track. If not, you know you’ve got the wrong chain or one that’s overstretched.
A chain that’s off-pitch doesn’t just grumble along. It wears faster. It might stretch unevenly. Before long, you’ve got a chain that won’t run smoothly on any sprocket.
The result? More downtime, more maintenance, more money flying out the window. Spot these issues early, and you can swap the chain before it damages crucial components.
Preventive maintenance is everything. It’s like changing your car’s oil before the engine seizes up.
Different machines, different pitches. Smaller pitches for light-duty setups—think compact conveyors or small drives. Larger pitches for heavy-duty tasks—like big industrial conveyors, farm equipment, or lumber processing lines.
Matching the pitch to your application helps everything run smoothly from the start.
Proper pitch means the chain works in harmony with sprockets and bearings. Less friction. Less noise. Less wear. You get a system that just works, without having to think about it.
That translates to fewer emergency calls to the maintenance team, less downtime, and more consistent productivity. Your bottom line will be sure to notice.
At NSAR bearings, we get it. Every detail counts. We offer high-quality bearings—pillow block ball bearings, deep groove ball bearings, spherical roller bearings, and more—to support your machinery.
With offices around the globe we can ship quickly no matter where you are. Need something customized? No problem. We handle OEM requests and brand partnerships to meet your exact specs.
Roller chain pitch isn’t some minor detail. It’s the heartbeat of how your chain drives the machinery. Get it right, and you’ll have a quieter, more efficient, and longer-lasting setup.
Treat pitch like the crucial measurement it is, and your machines will reward you with smooth operation and fewer maintenance issues.
