What are linear guides?

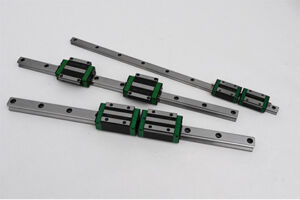

Linear guides, also known as linear rails, linear guideways, or linear slides, are used to support and guide moving parts in a given direction, enabling mechanical devices to achieve linear motion. They form the core component of high-precision linear slides or linear guide mechanisms; nearly all types of machines are equipped with linear guides. Key features of these guides include high load capacity, strong torque carrying capacity, high positioning accuracy, and virtually unlimited travel due to the low coefficient of friction of the rolling elements. Linear guides are available in a variety of sizes, slider types, and accessories, as well as various preloads and accuracy levels, making them easily adaptable to different application requirements.

Friction Coefficient of Linear Guides

Friction inguias linearesdepends not only on the external load but also on many other factors. For example, the preload level, external load, travel speed, and lubricant viscosity should be considered. Because the balls make point-to-point contact on the raceways, frictional resistance is low. The coefficient of friction for lubricated linear guides typically ranges from u = 0.003 to 0.005. This applies to unsealed sliders; using sealed sliders increases the friction coefficient of linear guides. Linear guides are less prone to frictional heat and thermal deformation during motion and are therefore commonly used in high-speed linear motion systems.
Linear Guide Applications
Linear guides are used to guide linear motion smoothly and effortlessly while bearing loads, enabling precise and efficient operation of mechanical devices. Linear guides are essential linear components in equipment such asmáquinas-ferramentasand semiconductor manufacturing equipment. In recent years, linear guides have also been widely used in consumer applications such asrailway vehicles, buses, automatic doors, and anti-vibration systems.

How to Select the Best Linear Guide Kit?

The following are key factors to consider when purchasing wholesale CNC linear guides.
1. Load Capacity
The load capacity of a linear guide refers to the maximum load it can withstand under normal operating conditions, typically categorized as dynamic and static loads.
Determining the Maximum Load: Evaluate the static (stationary) and dynamic (moving) loads the guide will experience during operation.
Safety Factor: A safety factor is incorporated into the calculation to account for unexpected loads or impact forces. The safety factor is typically 1.5 to 3 times the expected load.
2. Motion Type
Linear vs. Rotary: Determine whether the wholesale CNC linear guide you require is for purely linear or rotary motion. Different guides are designed for specific motion types.
Precision Requirement: Evaluate the level of precision required for your application. High-precision applications may benefit from ball or crossed-roller guides.
3. Size and Length
Profile Size: Select the appropriate size based on load capacity and travel distance. Confirm whether the available space in your design accommodates the selected CNC linear guide size.
Stroke Length: Determine the required travel distance and ensure the linear guide can accommodate it.
4. Guide Configuration
Guide Type: Consider different types of linear guides, such as:
Ball Linear Guides: Common, versatile, and suitable for a wide range of loads and speeds.
Roller Linear Guides: Offer increased load capacity and rigidity, making them ideal for heavy loads.
Cross-Roller Guides: Offer high precision and precise load distribution, often used in tooling and measuring equipment. Single Rail vs. Multi-Rail: Determine whether a single rail is sufficient, or if a multi-rail configuration is needed to ensure stability and force distribution.
5. Material Selection
Durability: Select a material that can withstand the operating environment. Common materials include:
Steel: High strength and durability, but may require lubrication and maintenance.
Aluminum: Lightweight and corrosion-resistant, but may have lower load capacities.
Polymer or composite materials: Suitable for lightweight applications, but may have lower load and speed capacities.
If the application involves moisture or corrosive substances, consider wholesale stainless steel or CNC linear guides with protective coatings.
6. Friction and Motion Characteristics
Smooth Motion: Evaluate the friction characteristics of the guide. Lower friction generally results in smoother, more efficient motion.
Guide Mechanism: Evaluate the design of the rolling elements (balls or rollers) and their impact on performance.
7. Environmental Conditions
Operating Environment: Analyze operating conditions, such as temperature, humidity, dust, or chemical exposure.
Protection Methods: Select guides with seals or wipers to prevent contamination and ensure longevity in harsh environments. 8. Speed ​​and Acceleration
Operating Speed: Determine the operating speed of the linear guide. Different guides are able to effectively handle different speeds.
Acceleration Profile: Consider how the guide responds to acceleration and deceleration, as this affects performance and wear.
9. Mounting Options
Mounting Style: Select a mounting style (through-hole, surface mount, etc.) that suits your application needs and ensure compatibility with existing components.
Alignment: Consider the ease of alignment and installation of the guide to ensure optimal performance.
10. Cost Considerations for Wholesale CNC Linear Guides
Budget: Determine your budget and explore various options that fit within it and still meet your performance requirements.
Total Cost of Ownership: Consider not only the initial cost, but also maintenance, lubrication, and subsequent replacement costs.
11. Manufacturer Reputation
Quality and Reliability: Research the manufacturer and its market reputation. When purchasing wholesale CNC linear guides, look for manufacturers with quality certifications and good customer service.
Technical Support: Consider whether the manufacturer offers technical support, especially for custom applications.

12. Testing and Validation
If possible, test a prototype of your CNC linear guide in your application to verify performance and suitability before making a large-scale purchase.
