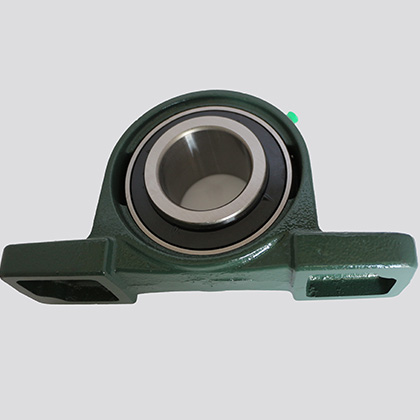

UCP 216 Bearing Specifications
| Pillow Block Ball Bearings No. | Shaft Dia | Dimensions(mm) | |||||
| d | |||||||
| mm | h | a | e | b | S1 | S2 | |
| UCP 216 | 80 | 88.9 | 292 | 232 | 78 | 25 | 31 |
| Pillow Block Ball Bearings No. | Shaft Dia | Dimensions(mm) | |||||
| d | |||||||
| mm | g | w | n | Bi | Weight | ||
| UCP 216 | 80 | 30 | 175 | 33.3 | 82.6 | 8.10 | |
Tolerances for Housings of UCP 216
Tolerances on spherical inside diameter of housing
Tolerances on Spherical Inside Diameter
Tolerances for Housings of UCP 216
| Da (mm) Nominal spherical inside diameter. | H7 | J7 | K7 | ||||
| Dam | Dam | Dam | |||||
| Over | Incl. | High | Low | High | Low | High | Low |
| 30 50 80 120 180 250 | 50 80 120 180 250 315 | +25 +30 +35 +40 +46 +52 | 0 0 0 0 0 0 | +14 +18 +22 +26 +30 +36 | -11 -12 -13 -14 -16 -16 | +7 +9 +10 +12 +13 +16 | -18 -21 -25 -28 -33 -36 |
(Notes):
Dam=(Damax+Damin)/2
maximum measured value of Da.
minimum measured value of Da.
Dimensional tolerances for spherical inside diameter of housing are classified into H7 clearance fit,K7 for interference fit and J7 for intermediate fit between H7 and K7.
When H7 fit is applied, the self-contained bearings are equipped with locking-pins.
