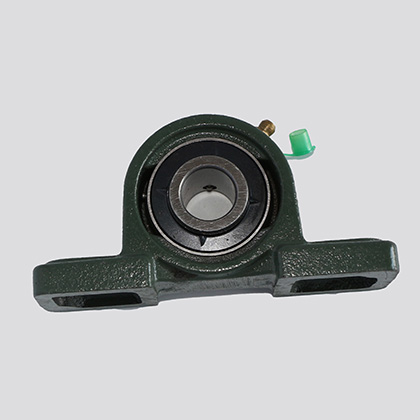

UCP 215 Bearing Specifications
Pillow Block Ball Bearings No. | Shaft Dia | Dimensions(mm) | |||||
d | |||||||
mm | h | a | e | b | S1 | S2 | |
UCP 215 | 75 | 82.6 | 275 | 217 | 74 | 25 | 31 |
Pillow Block Ball Bearings No. | Shaft Dia | Dimensions(mm) | |||||
d | |||||||
mm | g | w | n | Bi | Weight | ||
UCP 215 | 70 | 28 | 163 | 33.3 | 77.8 | 7.00 |
Inner Rings Tolerances of UCP 215
The inner rings tolerances are shown
Tolerances for cylindrical bore bearing inner rings
Cylindrical Bore Inner Rings Tolerances of UCP 215
d (mm) | △dmp | Vdp max. | △Hs | △Bs | Kia max. | |||
upper deviation | lower deviation | upper deviation | lower deviation | upper deviation | lower deviation | |||
>10~18 >18~30 >30~50 >50~80 >80~120 >120~180 | +15 +18 +21 +24 +28 +33 | 0 0 0 0 0 0 | 10 12 14 16 19 22 | +100 +100 +100 +100 +100 +100 | -100 -100 -100 -100 -100 -100 | 0 0 0 0 0 0 | -120 -120 -120 -150 -200 -250 | 12 15 18 22 28 35 |
(Notes):
1. Singleplanemean bore diameter deviation.
2. Radial runout of assembled bearing inner ring.
3. Deviation ofa single width of inner ring.
4. The deviation of a single eccentric volume of inner ring or eccentric locking collar.
5. The deviation of a single radial plane bearing bore diameter of the inner ring.
Tolerances for tapered bore bearing inner rings,Tolerances on Inner Rings of Tapered Bore Bearings.
Tolerances on Inner Rings of Tapered Bore Bearings of UCP 215
d(mm) | △d | △dl-△d | |||
Over | Incl. | High | Low | Max. | Min. |
10 18 30 50 80 120 | 18 30 50 80 120 180 | +27 +33 +39 +46 +54 +63 | 0 0 0 0 0 0 | +18 +21 +25 +30 +35 +40 | 0 0 0 0 0 0 |
