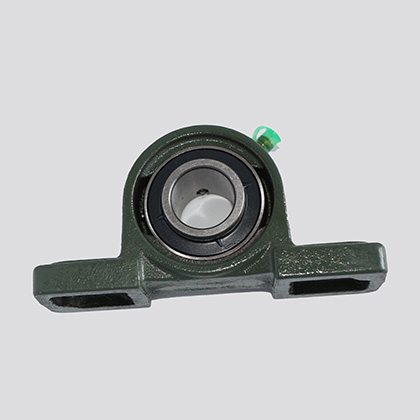

UCP 214 Bearing Specifications
| Pillow Block Ball Bearings No. | Shaft Dia | Dimensions(mm) | |||||
| d | |||||||
| mm | h | a | e | b | S1 | S2 | |
| UCP 214 | 70 | 79.4 | 266 | 210 | 72 | 25 | 31 |
| Pillow Block Ball Bearings No. | Shaft Dia | Dimensions(mm) | |||||
| d | |||||||
| mm | g | w | n | Bi | Weight | ||
| UCP 214 | 70 | 27 | 157 | 30.2 | 74.6 | 6.00 | |
Radial Internal Clearance of Bearings of UCP 214
The radial internal clearance of bearings for the unit is the same as the value of JB5304-9l. The clearance forcylindrical bore bearings is shown in table. The clearance for the taper bore bearings is shown in table.
Bearings Tolerances of UCP 214 Bearing
| D(mm) | △Dmp | Kea | ||
| over | incl. | High | Low | max |
| 30 50 80 120 150 180 250 | 50 80 120 150 180 250 315 | 0 0 0 0 0 0 0 | -11 -13 -15 -18 -25 -30 -35 | 20 25 35 40 45 50 60 |
(Notes):
1.The deviation of a single plane mean outside diameter of the outer ring.
2.Radial runout of assembled bearing outer ring.
Wholesale UCP 214 | UCP 214 Supplier
Welcome to UCP 214 manufacturer– NSAR, your trusted UCP 214 pillow block ball bearings factory in wholesale UCP 214 pillow block ball bearing! As leading UCP 214 pillow block bearing manufacturer in the bearings industry, we take immense pride in providing top-quality UCP 214, including UCP 202,UCP 203. NSAR offers a wide range of UCP 214 at the most competitive prices,which will provide you with a great shopping experience.
