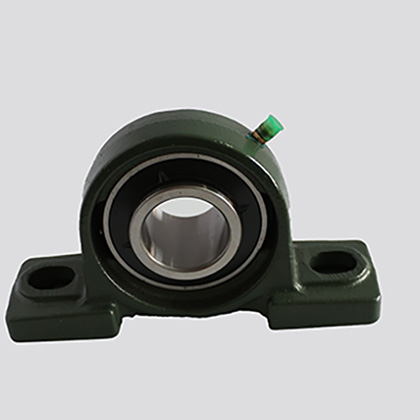

UCP 202 Bearing Specifications
Pillow Block Ball Bearings No. | Shaft Dia | Dimensions(mm) | |||||
d | |||||||
mm | h | a | e | b | S1 | S2 | |
UCP 202 | 15 | 30.2 | 127 | 95 | 38 | 13 | 19 |
Pillow Block Ball Bearings No. | Shaft Dia | Dimensions(mm) | |||||
d | |||||||
mm | g | w | n | Bi | Weight | ||
UCP 202 | 15 | 14 | 62 | 12.7 | 31.0 | 0.66 |
Radial Internal Clearance of Bearings of UCP 202
The radial internal clearance of bearings for the unit is the same as the value of JB5304-9l. The clearance forcylindrical bore bearings is shown in table. The clearance for the taper bore bearings is shown in table.
Radial Internal Clearance of Bearings (UCP 202)
Nominal Bore Diameter d(mm) | Group 2 | Basic Group | Group 3 | ||||
over | incl. | min. | max. | min. | max. | min. | max. |
10 18 24 30 40 50 65 80 100 120 | 18 24 30 40 50 65 80 100 120 140 | 3 5 5 6 6 8 10 12 15 18 | 18 20 20 20 23 28 30 36 41 48 | 10 12 12 13 14 18 20 24 28 33 | 25 28 28 33 36 43 51 58 66 81 | 18 20 23 28 30 38 46 53 61 71 | 33 36 41 46 51 61 84 97 114 |
Radial Internal Clearance of Tapered Bore Bearings of UCP 202 (Unit:μm)
Nominal Bore Diameter d(mm) | Group 2 | Basic Group | Group 3 | ||||
over | Incl. | Min. | Max. | Min. | Max. | Min. | Max. |
10 18 24 30 40 50 65 80 100 120 | 18 24 30 40 50 65 80 100 120 140 | 10 12 12 13 14 18 20 24 28 33 | 25 28 28 33 36 43 51 58 66 81 | 18 20 23 28 30 38 46 53 61 71 | 33 36 41 46 51 61 71 84 97 114 | 25 28 30 40 45 55 65 75 90 105 | 45 48 53 64 73 90 105 120 140 160 |
Wholesale UCP 202 | UCP 202 Supplier
Welcome to UCP 202 manufacturer– NSAR, your trusted UCP 202 pillow block ball bearings factory in wholesale UCP 202 pillow block ball bearing! As leading UCP 202 pillow block bearing manufacturer in the bearings industry, we take immense pride in providing top-quality UCP 202, including UCP 208,UCP 203. NSAR offers a wide range of UCP 202 at the most competitive prices,which will provide you with a great shopping experience.
