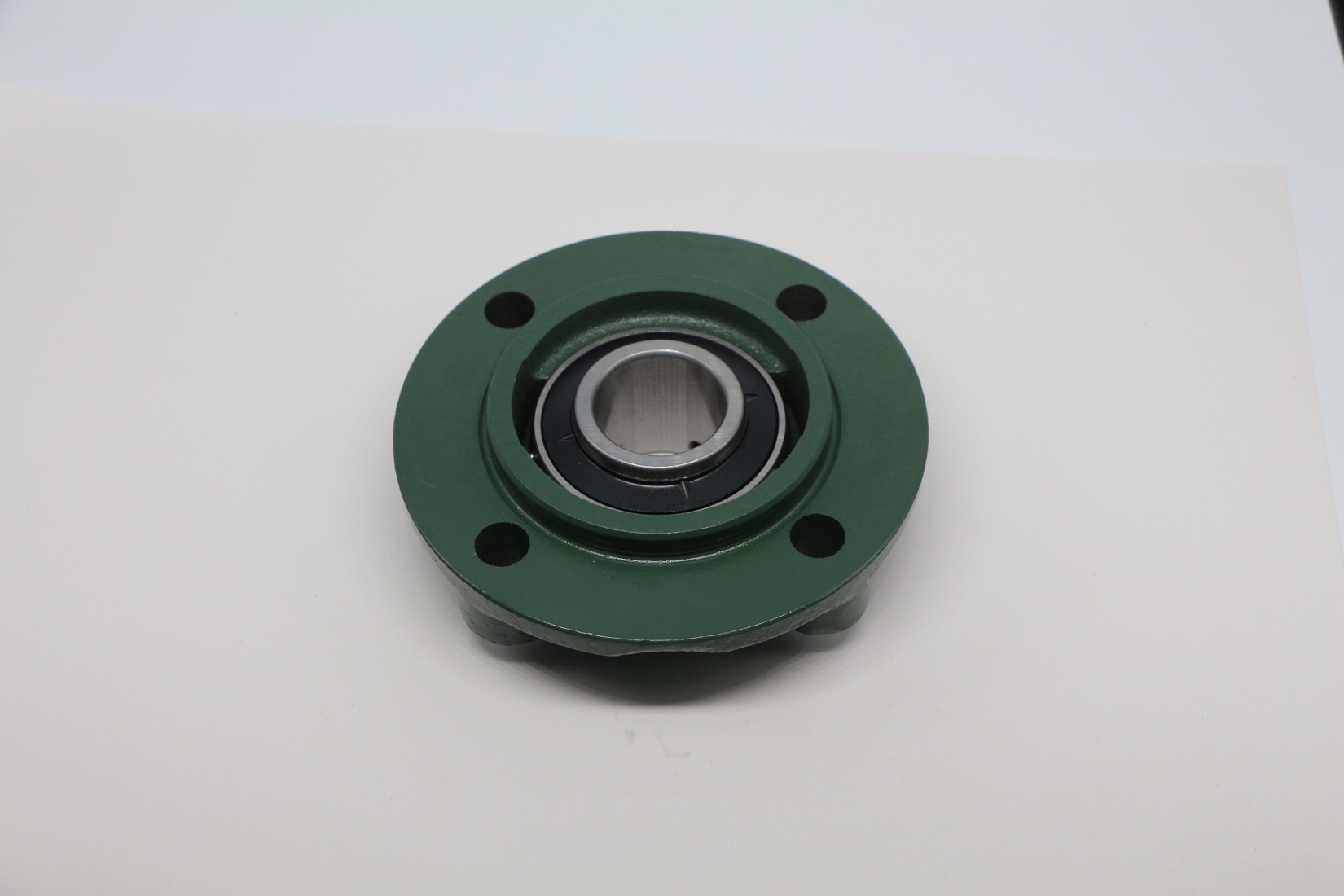

UCF 216 Cast Iron Pillow Block Ball Bearing

UCF 216 Pillow Block Ball Bearings Advantages:


(1)、High load,the special beam structure design of the linear slide rail can withstand the upward, downward, left and right directions at the same time.
(2)、High hardness,the surface hardness of the high-hardness plated hard shaft is durable and strong.
(3)、The manufacturing precision is strictly controlled, and the processing precision is high and the dimensions are standardized, so it is interchangeable.

Categories :
Contact Now
  • Description

UCF 216 Bearing Specifications

Pillow Block Ball Bearings No. Shaft Dia Dimensions(mm)
d
mm a e i g I z
UCF 216 80 208 165 34 22 58.0 83.3
Pillow Block Ball Bearings No. Shaft Dia Dimensions(mm)
d
mm s n Bi Weight
UCF 216 80 23 33.3 82.6 7.5

NSAR, a professional UCF 216 supplier in China, provides a broad variety of cast iron pillow block ball bearings with best customer service and quality assured.
With more than 10 years UCF 216 pillow block ball bearing manufacture experience, our UCF 216 has been exported to Europe, Portugal, Spain, South America, Oceania, South Africa and other countries and regions.NSAR can satisfy your bulk UCF 216 pillow block ball bearings customization needs.

Replacing bearings of UCF 216

if a bearing insert needs to be replaced, it is not always necessary to replace the housing, if the housingis undamaged.
Simply insert a new bearing into the old housing, after care fully inspecting the housing toassure that it is not damaged.

Replacement procedures for a bearing insert are listed below.
(1) Remove the complete bearing unit from the shaft and mounting base.
(2) Screw in the set screws so that the head of the set screw does not protrude outside the O.D. theinner race. Otherwise the head of the set screw may damage the bearing seat inside the housing.
(3) Turn the bearing 90° with a hammer handle or a bar or pipe until the bearing is horizontal.
(4) Remove the bearing insert from the housing via the bearing groove in the housing.
