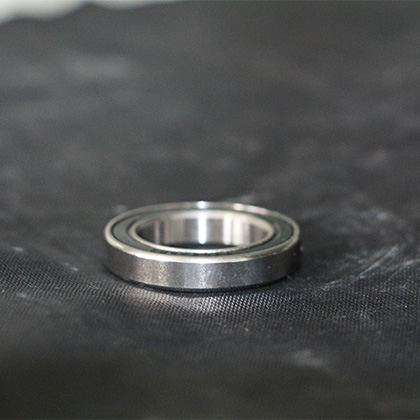

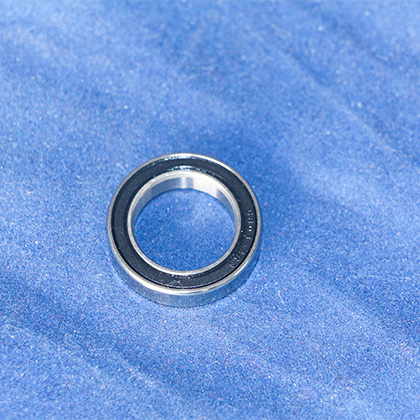

6801 Bearing Specifications & Dimensions:
Product Name: | Deep groove ball bearings | Model: | 6801 bearings |
Certification: | ISO9001-2015 | Country of origin: | Hebei province,China |
Material: | Chrome steel | Structure: | Deep Groove |
Type: | Ball Bearings | Bore Size:12 | mm |
Model Number: | 6801 open,:6801ZZ,:6801 2rs | Precision Rating: | ABEC 1,ABEC 3,ABEC 5, ABEC 7 |
Seals Type: | ZZ 2RS OPEN | Number of Row: | Single Row |
Cage: | Steel Cage | Lubrication: | Oil or grease |
Service: | OEM Service | Package: | Colorful box,White box,and plastic tube |
Brand: | NSAR,3D,OWO,CBQ,NASA | Size: | 12X21X5MM |

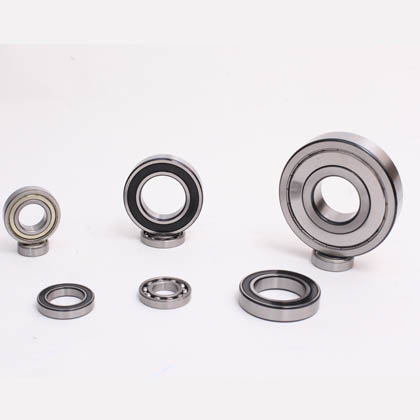

Products series: | Miniature ball bearings,such as 6308zz 6000 series ,such as 6004 bearing 6200 series,such as 6205 bearing 6300 series,such as 6305 bearing 6900 series,such as 6903 bearing |
Sample: | Available |
(Kn)Basic Load Rating | (Kn)Basic Load Rating | (r/min)Limit Rotational Speed | (r/min)Limit Rotational Speed |
Dynamic Cr | Static Cor | Grease Lubrication |
Oil Lubrication |
1.92 | 1.04 | 22000 | 30000 |
Weight | |||
0.006 |
Provide 6801 bearing for sale, our price and quality are more advantageous than other sellers. We are a 6801 bearings supplier, which will be shipped directly to you from 6801 deep groove ball bearings factory. And support custom 6801 deep groove ball bearing logo, 6801 bearing parts, 6801 bearings colour, etc.
We are committed to providing customers with the best 6801 ball bearings. You can contact us for more services. Just leave us a message to get product quotations and related details.
Look forward to cooperating with you! The updated 6801 bearings are more durable and wear-resistance.
6801 Bearing Testing
Every manufacturing operation f NSAR bearing is strictly required for material selection and parts production, inspection and documentation.
To guarantee the quality of the products,our company has equipped itself with reliable software and hardware.Our examination items and devices are as follows!
NO. | NO. | Examination Item | Test Device | Remarks |
1 | ① | Tolerance of dimension Bore devciation and variaion Ads.ADmp.Vdp.Vdmp |
D922,D923 | Testing every one |
1 | ② | Od deviation and variation Δds.ΔDmp.VDp.VDmp |
D011 D051 | Testing every one |
1 | ③ | Inner ring windth and variation ΔBs.VBs | G903SM | Example testing |
1 | ④ | Outer ring windth and variation ΔCs.VCs | G903SM | Example testing |
1 | ⑤ | Fitting chamfering dimension | Extreme prototype | Example testing |
2 | ① | Accuracy of rotation Kia inner ring radial runout | B002 | Example testing |
2 | ② | Kea outer ring radial runout | B013 | Example testing |
2 | ③ | Sd runout between inner ring reference plane and bore | B002 | Example testing |
2 | ④ | SD tilt variation between OD surface baeline and reference plane |
C002 | Example testing |
2 | ⑤ | Sia runout between inner ring plane and groove | B002 | Example testing |
2 | ⑥ | Sea runout between outer ring plane and groove | B013 | Example testing |
2 | ⑦ | Insi de and outside circle groove round slem inside and outside circle extemal diameter round degree | Y9025C | Example testing |
3 | 3 | (Gr radial clearance) | X092,X093 | Testing every one |
4 | ① | Heat treat quality Hardness(GCr15 58HRC) | HR150DTMHI | Example testing |
4 | ② | Material and metallographic analysis | Microscope | Example testing |
5 | ① | Apparent quality,Rotating flexbility | Feeling | Testing every one |
5 | ② | Shield or seal ring mark and fastness | Visual and feeling |
Assembling control |
5 | ③ | Package condition | Visual examination |
Testing every one |
6 | 6 | Vibration(Noise) | S09101II | According usege |
6801 Bearing Cages:
Steel No. | Chemical Composition(%) | Chemical Composition(%) | Chemical Composition(%) | Chemical Composition(%) | Chemical Composition(%) |
JISG3141 SPCC | C | Si | Mn | P | S |
JISG3141 SPCC | <0.12 | —— | <0.5 | <0.04 | ≤0.045 |
Steel No. | Chemical Composition(%) | Chemical Composition(%) | |||
JISG3141 SPCC | Ni | Cr | |||
JISG3141 SPCC | —— | —— |
6801 Deep Groove Ball Bearings Holder
R crown retainer
This type of retainer is a “comb tooth” shaped crown ring that can be embedded in the rolling elements. Suitable for medium to high speed low friction deep groove bearings. Depending on the purpose, the retainer can be made of copper, steel, or polymer.
Q full ball
This type of bearing does not have any spacers between the rolling elements. This type of bearing is a full complement ball bearing or angular contact bearing in position 5. This design is only used under high load conditions where the friction torque is large.
