Linear guides play a crucial role in the performance of CNC machines. They ensure smooth, precise, and repeatable linear motion, which directly affects machining accuracy and surface quality. Whether used in CNC milling machines, routers, or lathes, the linear guide system is the foundation of stable and high-speed operation.
A linear guide, also known as a linear motion guide or linear guideway, is a mechanical component that allows smooth motion along a straight path. It consists of a guide rail and a carriage block with rolling elements such as balls or rollers. These rolling elements minimize friction and enable high positioning accuracy under heavy loads.
In CNC machinery, linear guides replace traditional slide ways because they deliver:
Higher rigidity
Greater positioning accuracy
Lower friction and wear
Longer service life
Types of Linear Guides Used in CNC Machines

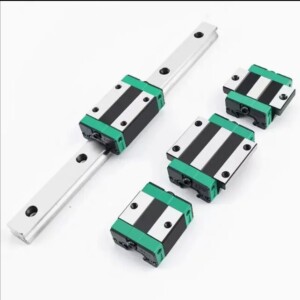

Profile Rail Linear Guides (Square Type)
These are the most common type used in modern CNC equipment. They provide excellent rigidity, load capacity, and precision. Ideal for high-speed CNC milling machines, laser cutters, and precision machining centers.
Round Shaft Linear Guides
Simpler in structure and easier to install, round shaft guides are often used in light-duty or hobby CNC routers. They are more tolerant of mounting errors but less rigid compared to profiled rails.
Roller-Type Linear Guides
Designed for very high loads and heavy-duty applications. Roller elements provide higher contact area and stiffness, making them suitable for large industrial CNC machines.
High Precision:
Linear guides minimize motion error and ensure the cutting tool moves accurately along the programmed path.
Smooth Operation:
The rolling contact between the rail and block reduces friction, resulting in smooth, stable motion even at high speeds.
High Rigidity and Load Capacity:
Profile rails are designed to handle both radial and axial forces, ensuring reliable performance during heavy cutting.
Long Service Life:
With proper lubrication and sealing, linear guides can operate for years with minimal maintenance.
Easy Maintenance:
Most modern linear guide blocks are equipped with dust seals and grease fittings for convenient servicing.
When selecting a linear guide system, consider the following factors:
Load and Rigidity Requirements – Heavier CNC applications require larger rails (e.g., HGR30–HGR45).
Accuracy and Preload – Higher preload improves precision but demands accurate mounting surfaces.
Environmental Conditions – Use stainless steel or sealed types for dusty or coolant-exposed environments.
Speed and Travel Length – Choose high-speed ball circulation designs for long travel distances.
Linear guides are essential components in:
CNC milling and turning centers
CNC routers for wood, plastic, or metal
Laser cutting and engraving machines
3D printing and automation equipment
Their ability to provide stable, repeatable linear motion makes them indispensable in any precision-driven mechanical system.
DFL NSAR – Your Reliable Linear Guide Supplier
As a professional bearing and motion component manufacturer, DFL NSAR offers a full range of linear motion products, including linear guides, ball screws, and precision bearings for CNC machinery.
We provide reliable quality, competitive prices, and professional technical support to meet the demands of modern manufacturing.
Choose DFL NSAR as your Linear Guide and CNC Motion Component Supplier — where accuracy meets durability.
