In the bearing industry, the terms spherical bearing and double row spherical bearing are often mentioned side by side. While they share similarities in design and function, there are important distinctions that determine their suitability for different applications. Understanding these differences helps engineers, buyers, and end users choose the right product for their machinery.
A spherical bearing is a self-aligning bearing designed to accommodate misalignment between the shaft and housing. It typically consists of an inner ring with a spherical outer surface and an outer ring with a concave inner surface. This design allows the bearing to rotate freely while compensating for shaft deflection or installation errors.
Key advantages of spherical bearings:
Excellent self-aligning capability
Can handle moderate radial and axial loads
Reduces stress caused by misalignment
Spherical bearings are widely used in heavy machinery, conveyors, agricultural equipment, and construction machinery where shaft misalignment is common.

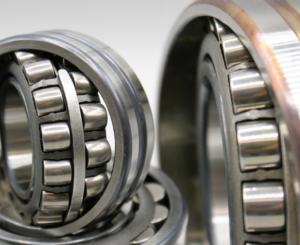

A double row spherical bearing, often called a spherical roller bearing, is a more advanced version that contains two rows of symmetrical rollers. The rollers are guided by a common spherical raceway in the outer ring, while the inner ring typically has two raceways. This arrangement provides higher load-carrying capacity compared to a single-row spherical bearing.
Key advantages of double row spherical bearings:
High radial load capacity
Can also carry heavy axial loads in both directions
Long service life under harsh operating conditions
Better suited for shock loads and vibrations
These bearings are commonly applied in mining equipment, paper mills, gearboxes, wind turbines, and other heavy-duty industries.
| Feature | Spherical Bearing | Double Row Spherical Bearing |
|---|---|---|
| Structure | Single row, ball or sliding design | Two rows of rollers |
| Load Capacity | Moderate radial & axial loads | Very high radial & axial loads |
| Alignment | Excellent self-alignment | Good self-alignment, but slightly less than spherical bearings |
| Durability | Suitable for medium-duty applications | Suitable for heavy-duty and shock-loaded environments |
| Applications | Agricultural machines, conveyors, light to medium equipment | Mining, steel mills, heavy machinery, turbines |
If your equipment requires simple misalignment correction with moderate load demands, a spherical bearing is sufficient.
If your application involves high radial and axial loads, harsh conditions, or continuous heavy operation, a double row spherical bearing is the better choice.
Both spherical bearings and double row spherical bearings serve critical roles in mechanical systems. While they share a similar principle of accommodating misalignment, their load capacity and application scope differ significantly. By evaluating your machinery’s operating environment, load requirements, and alignment conditions, you can make an informed choice that ensures reliability and efficiency.
At DFL NSAR, we not only supply standard spherical bearings but also provide custom double row spherical roller bearings tailored for heavy-duty industries. Our products combine high load capacity, durability, and competitive prices, ensuring your machines run longer and more efficiently.
